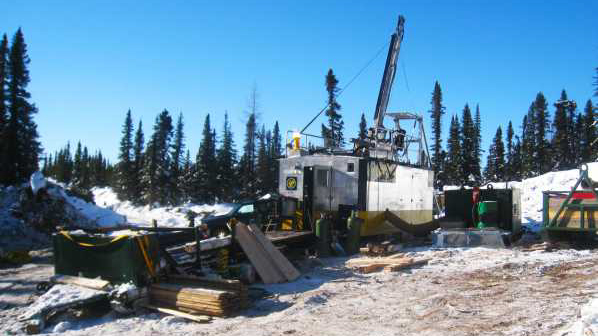

Duralite DL-1000

DURALITE DIAMOND DRILLS

Duralite Diamond Drills are constructed from only the best quality materials and are designed to be both durable and lightweight. All aspects of the drill have been designed to ensure maximum safety for the user(s). Considerable attention has been given to the size and weight of every component to afford the most efficient disassembly, transport, and re-assembly possible. The total operational weight of the Duralite 1000N is only 9,755lbs (4,426 kg).

DURALITE DL-1000 MODULIZED COMPONENTS: Drilling capacity in normal conditions. 900 mts. In HQ diameter and 1500 mts. In NQ diameter.

Duralite DL-1000

PERFORMANCE

Depth capacity* for diamond drilling
  • B 2 3/16" (55.6 MM)4,265 FT (1,300 M)
  • N 2 3/4" (69.9 MM)3,281 FT (1,000 M)
  • H 3 1/2" (88.9 MM)2,559 FT (780 M)
*Drilling capacity is based on a 90° hole and will depend on in-hole tools, ground conditions, drilling techniques, and equipment use.

PERFORMANCE

Diesel John Deere 170Hp at 2,200 RPM

PERFORMANCE

Depth capacity* for diamond drilling
  • B 2 3/16" (55.6 MM)4,265 FT (1,300 M)
  • N 2 3/4" (69.9 MM)3,281 FT (1,000 M)
  • H 3 1/2" (88.9 MM)2,559 FT (780 M)
*Drilling capacity is based on a 90° hole and will depend on in-hole tools, ground conditions, drilling techniques, and equipment use.

PERFORMANCE

Diesel John Deere 170Hp at 2,200 RPM

HYDRAULIC MODULE

Our proven hydraulic system is an open center, vented tank system, constructed using only top brand name pumps, valves, and accessories. This hydraulic system delivers 62 GPM at 2,200 RPM.

FEED FRAME AND BASE

The feed frame is constructed using aluminum “I” Beams. The head carriage is constructed of aluminum and the tower base is constructed using aluminum channel with aluminum angle for strengtheners. AII hinge points are constructed using Stainless Steel.

  • Head Stroke:60 lnches (1.52 M)
  • Pull Capacity:29,000 lbs @ 3,500 PSI
  • Possible drilling angles:45 º to 90 °

ROTARY HEAD, CHUCK AND ROD HOLDER

  • Holding Capacity:26,000 lbs (11,790 kg)
  • Maximum Rod Size:3.5" (89 mm)
  • Chuck Operation:Spring closed and hydraulically opened
  • Final Orive:Gear driven
  • Hydraulic motor: Variable (160cc)
  • Transmission:Hi-Lo 2 Speed manual
  • Gear Ratio:High: 3.1:1 / Low: 5.4:1
  • Lubrication:Pumped oil, filter and cooler
  • Fabrication:Steel
  • Speed:Variable up to 1,500 RPM

WEIGHT

  • Power Unit c/w Guarding1,715 lbs
  • Hydraulic Module1,590
  • Feed frame with mounts 1,240
  • Tower base c/w winches (no cable)820
  • Tower c/w stiff legs 1,480
  • Drill head assembly c/w motor & hoses1,100
  • Rod clamp assembly 230
  • Fibreglass floors880
  • Foundation beams 700
  • TOTAL WEIGHT9,755 Lbs
