Duralite Diamond Drills are constructed from only the best quality materials and are designed to be both durable and lightweight. All aspects of the drill have been designed to ensure maximum safety for the user(s). Considerable attention has been given to the size and weight of every component to afford the most efficient disassembly, transport, and re-assembly possible. The total operational weight of the Duralite T800N includes the drill, track system, floors and guarding.

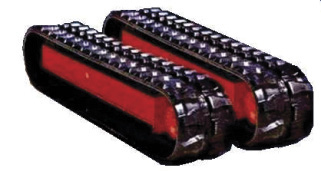

DURALITE DL-800 SELF PROPELLED (with rubber tracks): Drilling capacity in normal conditions. 700 mts. In HQ diameter and 1050 mts. In NQ diameter.
700 M ( 2,250 FT) HQ
1050 M ( 3,400 FT) NQ
Drill – 5250 lbs
Tracks- 2200 lbs
TOTAL = 7450 lbs
(Maximun component weight is less than 350 Kg)
24,700 lbs @ 3,500 PSI
Aluminum Heliportable and Man-Portable Drill Rigs.
Fly and Skid Mounted Rod Handlers.
Stell Skids and Fibreglass Fly Shacks.
Custom Manufacturing.
■ MOBILITY
Can be transported by helicopter to remote locations, towed on a trailer, driver and is even Man-Portable. Ease of mobility results in reduced downtime between moves, reduces move related costs, and helps reduce environmental destruction.
■ MODULAR DESIGN
Both drill and track undercarriage can be broken down to small, ligthtweight components. Even fully configured, this drill is compact and light. Lift-Points and handles on all components make them easily Heli-Portable and Man-Portable.
■ LIGHTWEIGHT
Made from lightweight aliminum, this drill was designed to be as small as possibile but stillable to drill as deep as begger rigs. The heaviest component is less than 350 Kg. (770 Lbs).
■ ROTATION UNITS
Hi-LO 2 Speed manual, spring close and hydraulic open.
3.583 “(91 MM) Max ROD zize.
■ POWER UNITS
1- YANMAR 85 HP, TIER 11, 4 CYCLE, INLINE,
LIQUID-COOLED TURBO DIESEL ENGINE
(81HP AT ALTITUDE OF 3,000M)
1-YANMAR 47 HP, TIER 11, 4 CYCLE, INLINE, LIQUID-COOLED TURBO DIESEL ENGINE (45 HP AT ALTITUDE OF 3,000M)
■ HYDRAULIC PACK
Self contained and designed for easy operation.
Main hydraulic system 37 GPM @ 2,500 RPM
Secondary hydraulic system 21 GPM @ 2,500 RPM
■ WIRELINE WINCH
2,000 LBS PULL CAPACITY -HYDRAULIC DRIVEN
3,000 FT (914 M) OF 3/16″ CABLE CAPACITY
■ SERVICE WINCH
300 LBS PULL CAPACITY-HYDRAULIC DRIVEN
100 FT (30.5 M) OF 3/8″ CABLE CAPACITY
■ MAST
40° OFF HORIZONTAL (ANGLE DRILLING) TO 90° VERTICAL DOWN
TWO NYLATRON SHEAVE WHEELS
■ AVAILIBLE OPTION
Wired or wireless, remote controlled drive system.
