HYDRO 55

BOART LONGYEAR

Boart Longyear is recognized worldwide as a leader in the manufacturing of Diamond Core Drills. They manufacture a broad range of Core Drills for surface and underground applications.

Boart Longyear offer a variety of solutions, from shallow and deep hole drilling, with small and large diameter core, for both wireline and conventional drilling to versatility of mounting. They can be mounted from a truck, crawler, trailer, flyable versions or skid mounted to suit many applications.

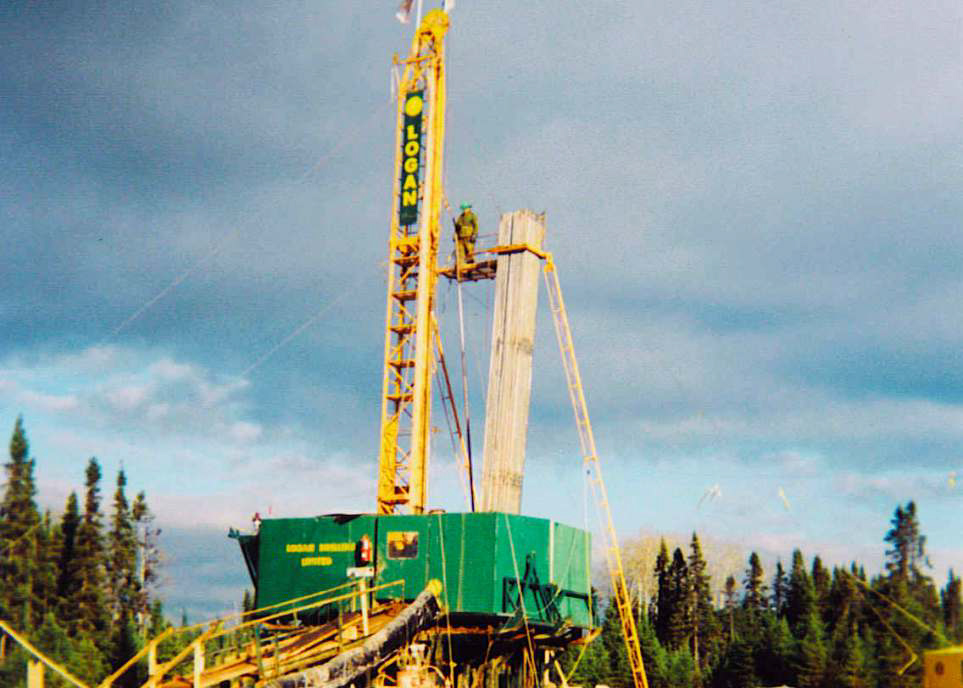

The Hydro 55 Diamond Core Drill has a PowerTech PSX 9.0L, 6 cyl., 360 hp @ 1800 rpm engine as the prime mover, giving this drill the capacity to drill to depths of 2,500m with NQ drill rods. This drill is mounted in a 2 part, fully uni zed drill shack and is equipped with a 40′ pull telescopic tower, 2 part line, and a fully hydraulic breakout tool, FMC 550 pressure pump and a Bloom Winch holdback system for precise weight control.

HYDRO 55

DRILL DEPTH CAPACITY

  • BQ9842 ft (3000 m)
  • NQ8202 ft (2500 m)
  • HQ5574 ft (1700 m)

HYDRAULIC SYSTEM

One hydrosta c, variable volume, piston pump (manual swashplate control) delivers power to the spindle and main hoist motor drive.
  • Suggested opera ng pressure3000 psi (20.7 MPa)
  • Relief Setting5000 psi (34.4 MPa) maximum rated delivery: 96.3 gpm (36.5 l/min)
A second, pressure compensated piston pump delivers power to the retrac on, chuck and feed cylinders.

SYSTEM PRESSURES

  • Normal Operation 1000 psi (6.9 MPa)
  • Intermittent1200 psi (8.3 MPa)
  • Maximum Delivery25 gpm (95 l/min)
A third pump powers the op onal wireline hoist and mud pump circuits.

MAIN HOIST

  • TypePlanetary (hyd/mech)
  • Drum Dimension 13” (330mm) dia, 11” (280mm) long drum
  • Clutch Band Size4” (102mm) W x 18” (457 mm) diameter
  • Braked Band Size5” (127mm) W x 24” (610mm) diameter
  • Drum Capacity100 ft of ¾” rope (30m x 19mm)
  • Rated Bare Drum Speed0-364 ft/min (0-88.5m/min)
  • Rated Bare Drum Line Pull27,500 lbf (122.3 kN)
  • Max. Bare Drum Line Pull 75,000 lbf @ 3000 psi system pressure (245 kN @ 20.7 MPa)
  • Hoisting Cable ¾” (19mm)
  • Beaking Strength 43,600 lbf (194 kN) for new cable

TRANSMISSION

  • TypeSpur gear
  • Speeds 5 forward (reversible in all gears with hydraulics for opera ng the hoist only)

HYDRAULIC SWIVEL HEAD

  • Type Twin cylinder
  • Spindle ID3 7/8” (98.4mm)
  • Hydraulic Cylinder ID4” (101mm)
  • Lift Area 25.1” (162cm) square, total for 2 cylinders
  • Thrust Area 18.85” (121.6 cm) square, total for 2 cylinders
  • Feed Length24” (610mm) std; 42” (1067mm) upon request
  • Angle Range60 degrees
  • Max Rated Thrust22,600 lb (100.5 kN) @ 1200 psi for swivel head
  • Related Lifting Capacity25,000 lbf (111.0 kN) for swivel head @ 1000 psi (6.9 MPa)
  • Max Lift 30,000 lb (133.4 kN) for swivel head

HYDRO CHUNK

  • Type Fully hydraulic adjustable chuck jaw pressure
  • Jaws3 self-centering, tungsten carbide, insert type
  • CapacityEW rods through HQ (rods)/NW casing/CHD 101 (rods)
  • Related Lifting Capacity23,000 lbf @ 750 psi - normal opera ng pressure
  • Related Trhust Capacity25,000 lbf @ 750 psi - normal opera ng pressure
  • Tested Lifting Capacity 44,500 lbf @ 1000 psi - non-rota ng load
  • Rated Torsional Capacity2000 lb ft (2.7 kN) for NQ or NCQ rod.
For other rod or casing sizes, the capacity is propor onal to the rod or casing OD

WIRELINE HOIST

  • TypeHydraulic powered, skid mounted
  • Drum Dimensions5 ½” (140mm) diameter x 18.125” (460mm) length
  • Brake TypeBand
  • Rope Capacity12,930 ft of 3/16” (3945m x 4.8mm) cable 6930 􀀁 0f ¼” (2115m x 6.3mm) cable
  • Line SpeedInfinitely adjustable up to 800 􀀁/min (244m/min)
  • Maximum Rated Pull3490 lbf (15.5kN)
  • Weight (net)510 lb (230 kg)
